AIR ALUMINIUM FITTING
Elevate your system with TAPCO FST aluminium pipes

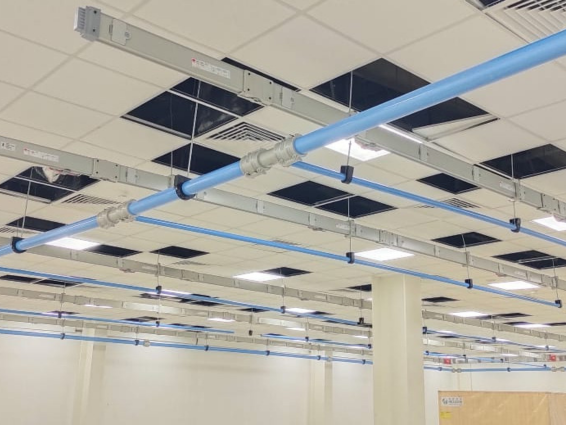

Experience unrivalled performance and reliability with FST compressed air piping solutions. Our state-of-the-art aluminium pipes are engineered for maximum efficiency, delivering seamless airflow, and minimizing pressure drops. With easy installation, durability, and corrosion resistance, FST pipes ensure optimal operation for your compressed air system.
Product Highlights
Perfect Compatibility
Universal used in each brand air compressor and post-processing equipment and pneumatic supporting
Suitable for almost harsh environments
Excellent resistance for the following environment, mechanical vibration, thermal change environment, ultraviolet light, the environment containing compressor oil.
Safe
Strong and durable, not easy to burn materials and components have extremely high pressure resistance.
Energy Saving
No maintenance and reusal for system moving.Smooth inner surface for lower pressure drops and energy saving

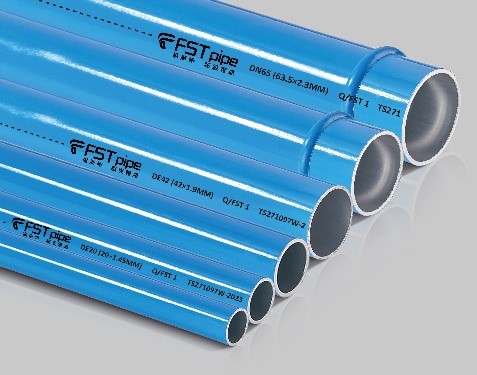

PIPE DATA SHEET
| Product Number | Standard | Outer Diameter (mm) | Inside Diameter (mm) | Pipe Length (m) | Product Description |
|---|---|---|---|---|---|
| 17226000 | DN20 | 20.0 | 17.1 | 6 | 020X1.45 |
| 17336000 | DN25 | 24.8 | 21.9 | 6 | 024.8X1.45 |
| 2015336000 | DN32 | 32.2 | 29.0 | 6 | 032.2X1.6 |
| 17556000 | DN42 | 42.0 | 38.2 | 6 | 042X1.9 |
| 2015556002 | DN50 | 50.6 | 46.4 | 6 | 050.6X2.1, both ends bead rolled |
| 2019666002 | DN65 | 63.5 | 58.9 | 6 | 063.5X2.3, both ends bead rolled |
| 2019886002 | DN80 | 88.9 | 83.7 | 6 | 088.9X2.6, both ends bead rolled |
| 2015996002 | DN100 | 100.2 | 94.7 | 6 | 0100.2X2.6, both ends bead rolled |
| 16CC6002 | DN125 | 133.0 | 127.5 | 6 | 0133X2.75, both ends bead rolled |
| 16CC6002 | DN125 | 133.0 | 127.5 | 6 | 0133X2.75, both ends bead rolled |
| 2015AA6002 | DN148 | 148.2 | 142.2 | 6 | 0148.2X3, both ends bead rolled |
| 2015BB6002 | DN200 | 205.0 | 198.6 | 6 | 0205X3.2, both ends bead rolled |
PIPE TECHNICAL SPECIFICATIONS
-> FST PIPE TECHNICAL DATA
- Ambient temperature: -29°C + 80°C
- Maximum Working Pressure:13bar
- Vacuum: 0.013bar absolute pressure (compatible with all compressor oils)
- Suitable for outdoor installation: FST Pipe series are fire-resistant (in line with UL-90-VO Standard) seamless extruded aluminium pipe
- GB/T4437.1-2015;
- FST Pipe series obtained CE and TS certification
